Compatible for:
Sur-Ron Light Bee X
Talaria Sting MX3 / MX4 / Talaria XXX
Segway X160 X260
E Ride Pro SR/SS 3.0/SS (19")/S (17")
79 Bike Falcon M

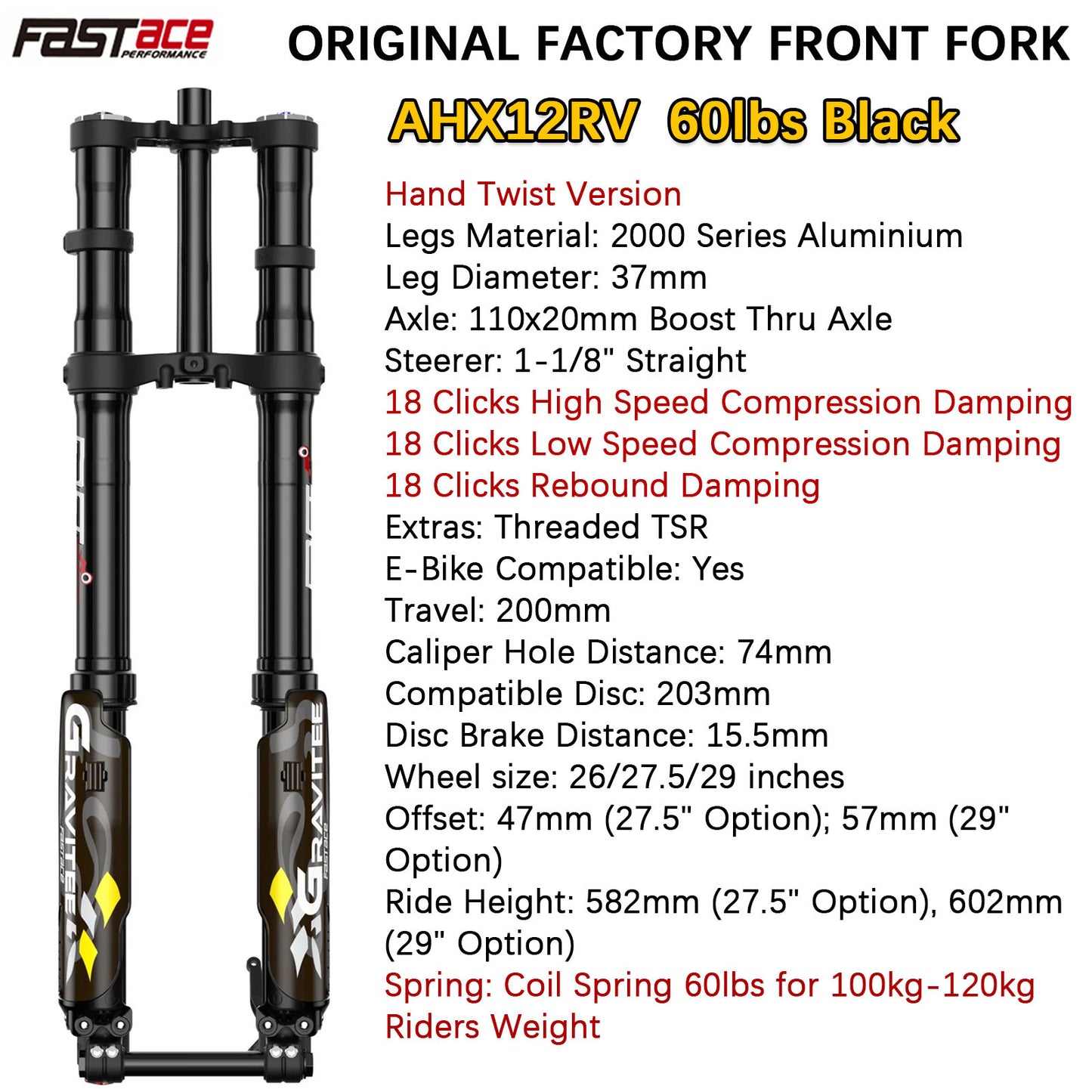

AHX12RV 60lbs FEATURES:
Hand Twist Version
Legs Material: 2000 Series Aluminium
Leg Diameter: 37mm
Use: Mountain Bike (MTB), eletric dirt bike, DH, Sur-Ron, Talaria
Axle: 20*10*M14*P1.5*170L
Steerer: 1-1/8" Straight (about 28.5mm)
Spring: Coil Spring

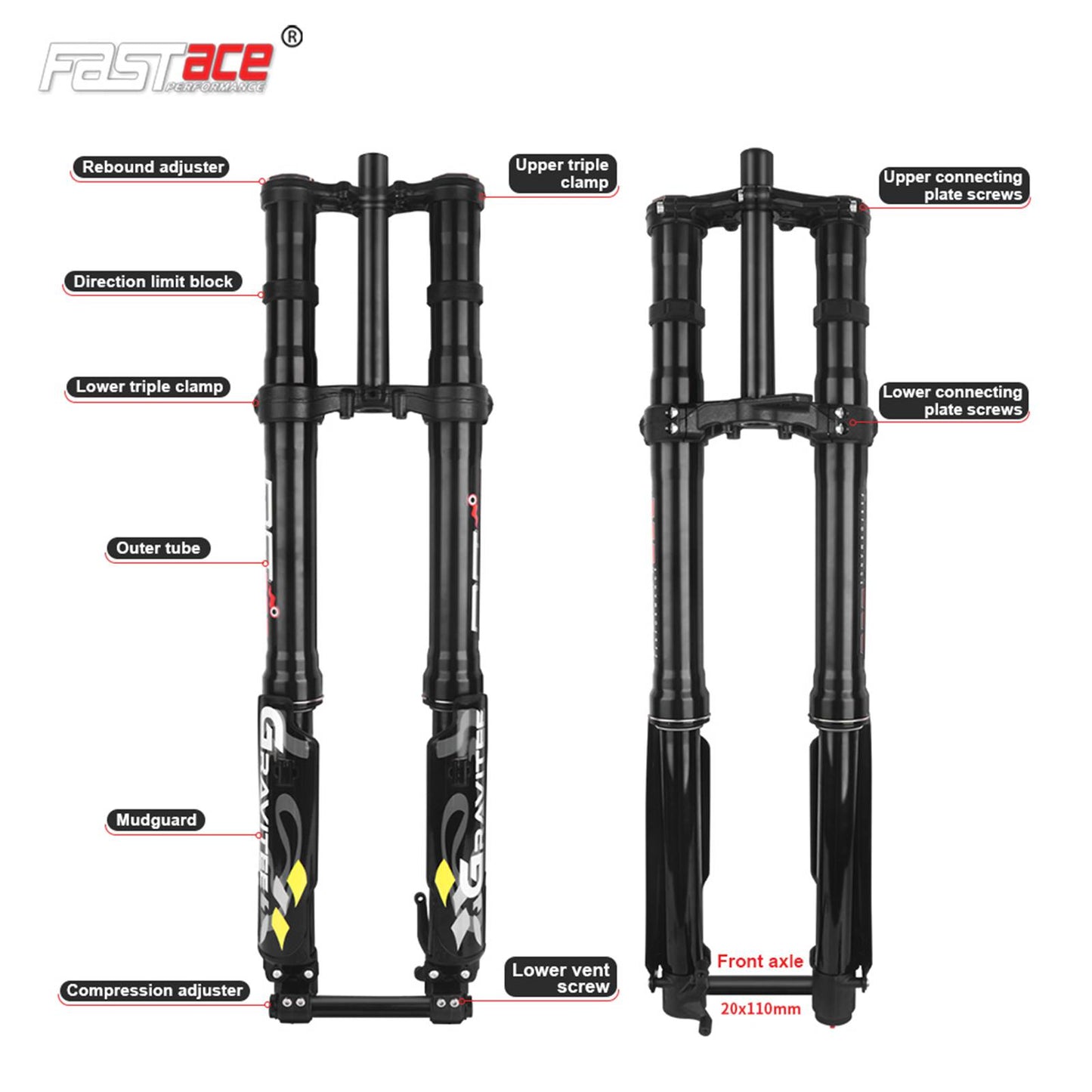

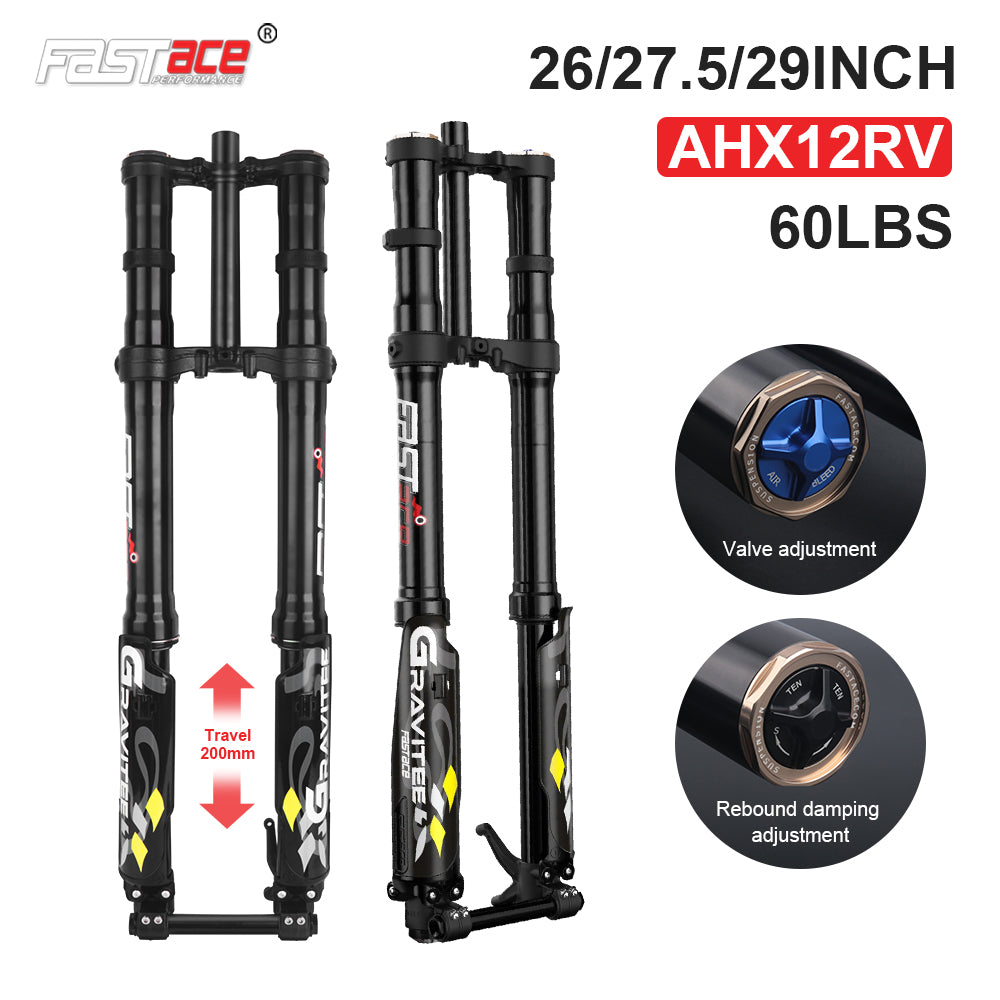

Adjustments: Rebound, HS and LS Compression
18 Clicks High Speed Compression Damping
18 Clicks Low Speed Compression Damping
18 Clicks Rebound Damping

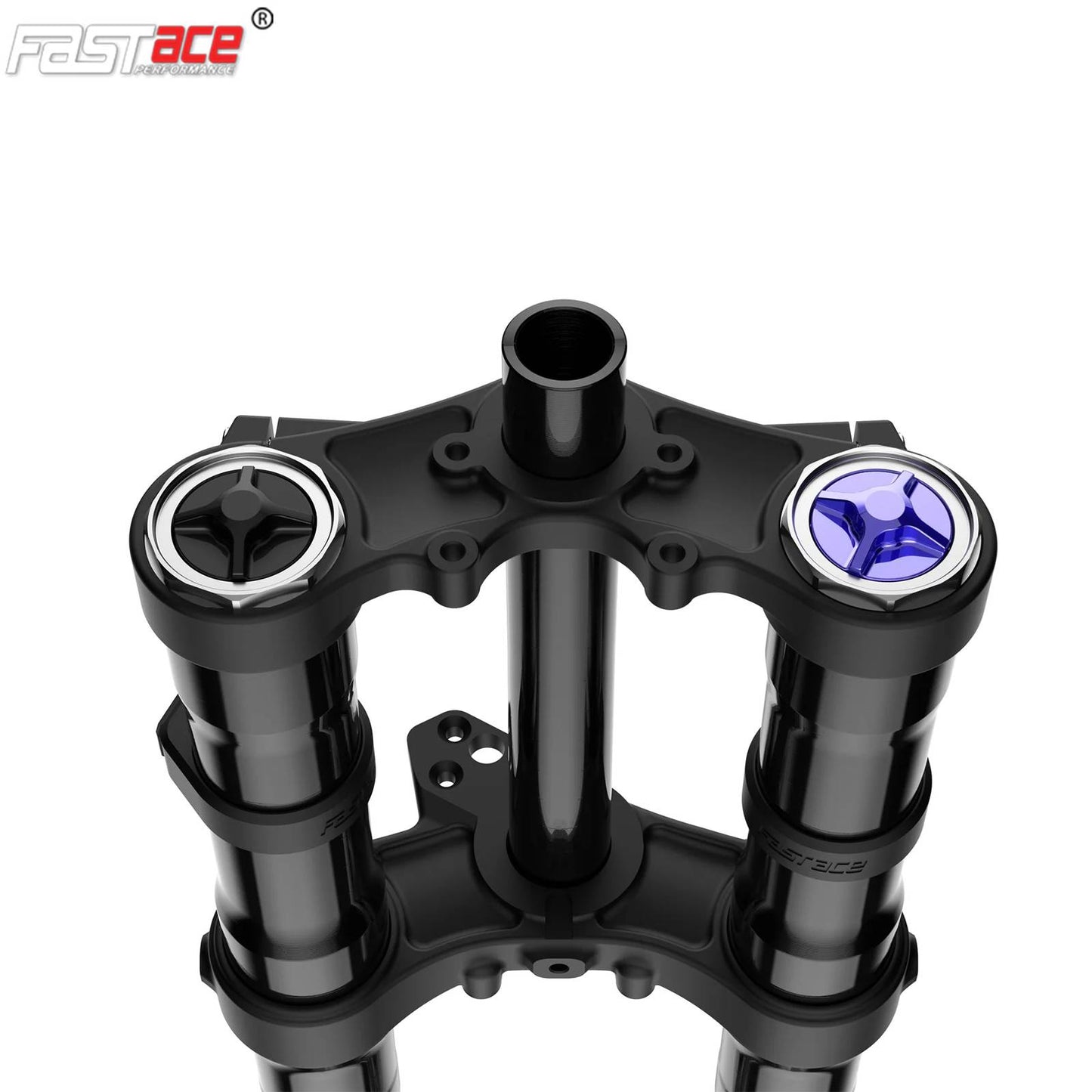

Crown: Forged

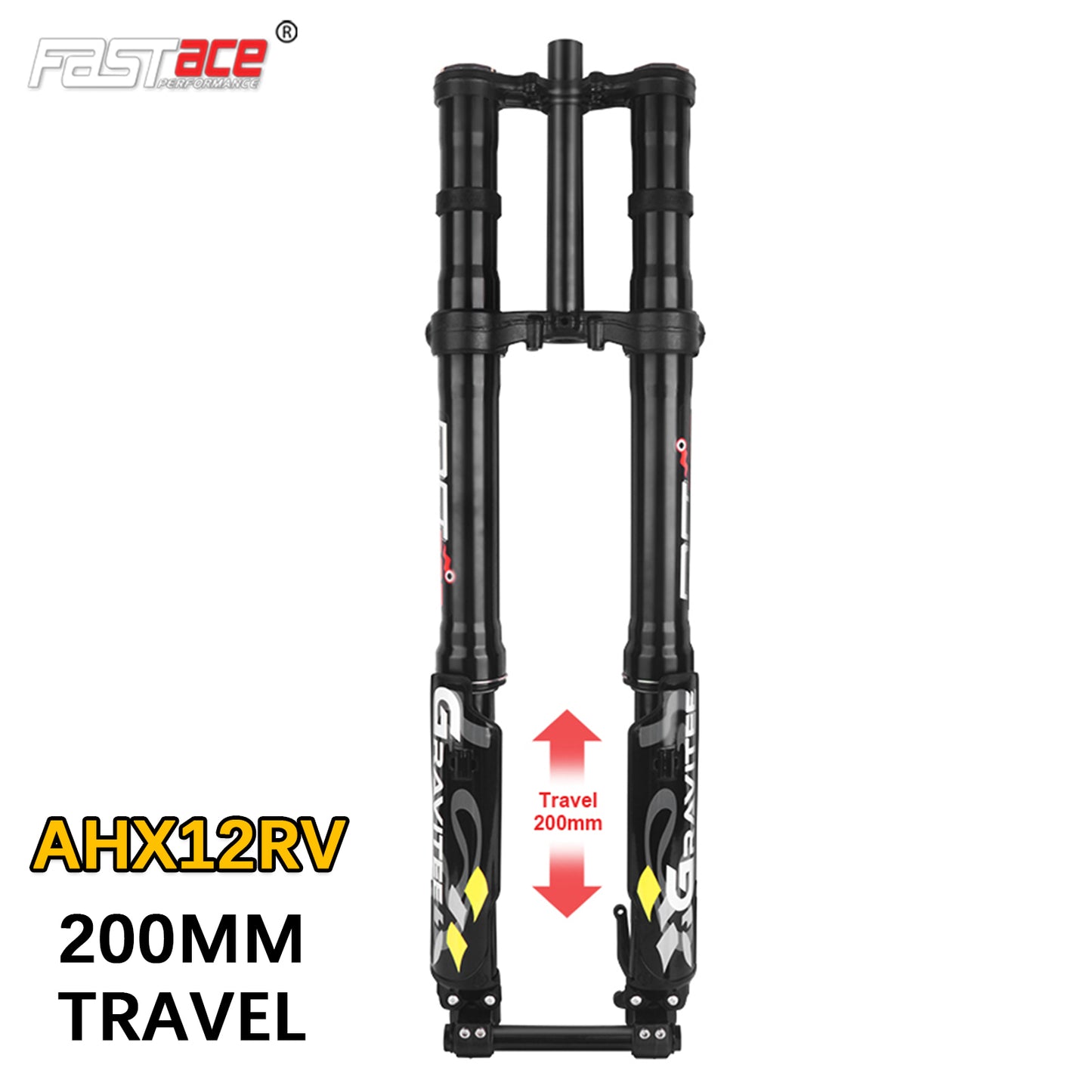

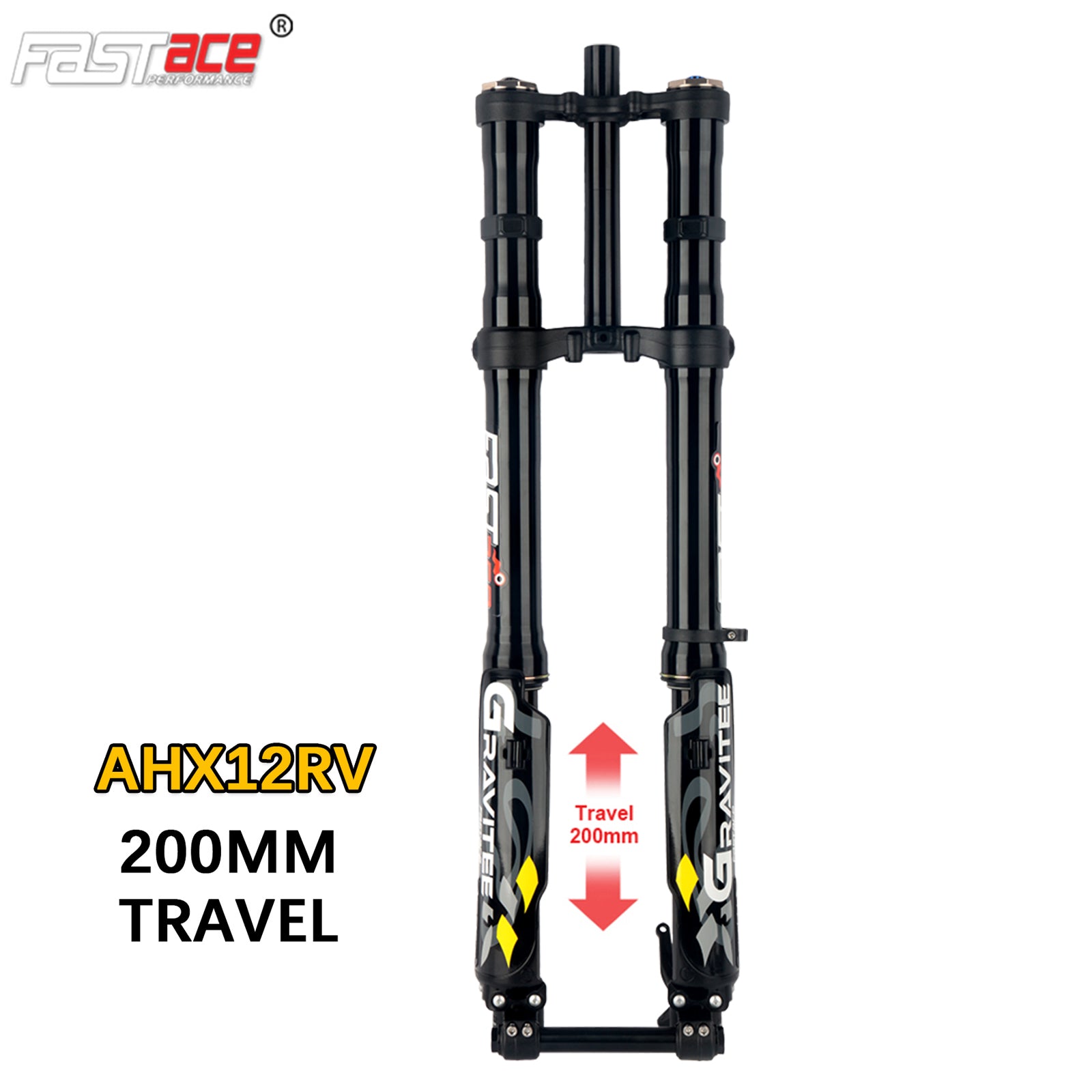

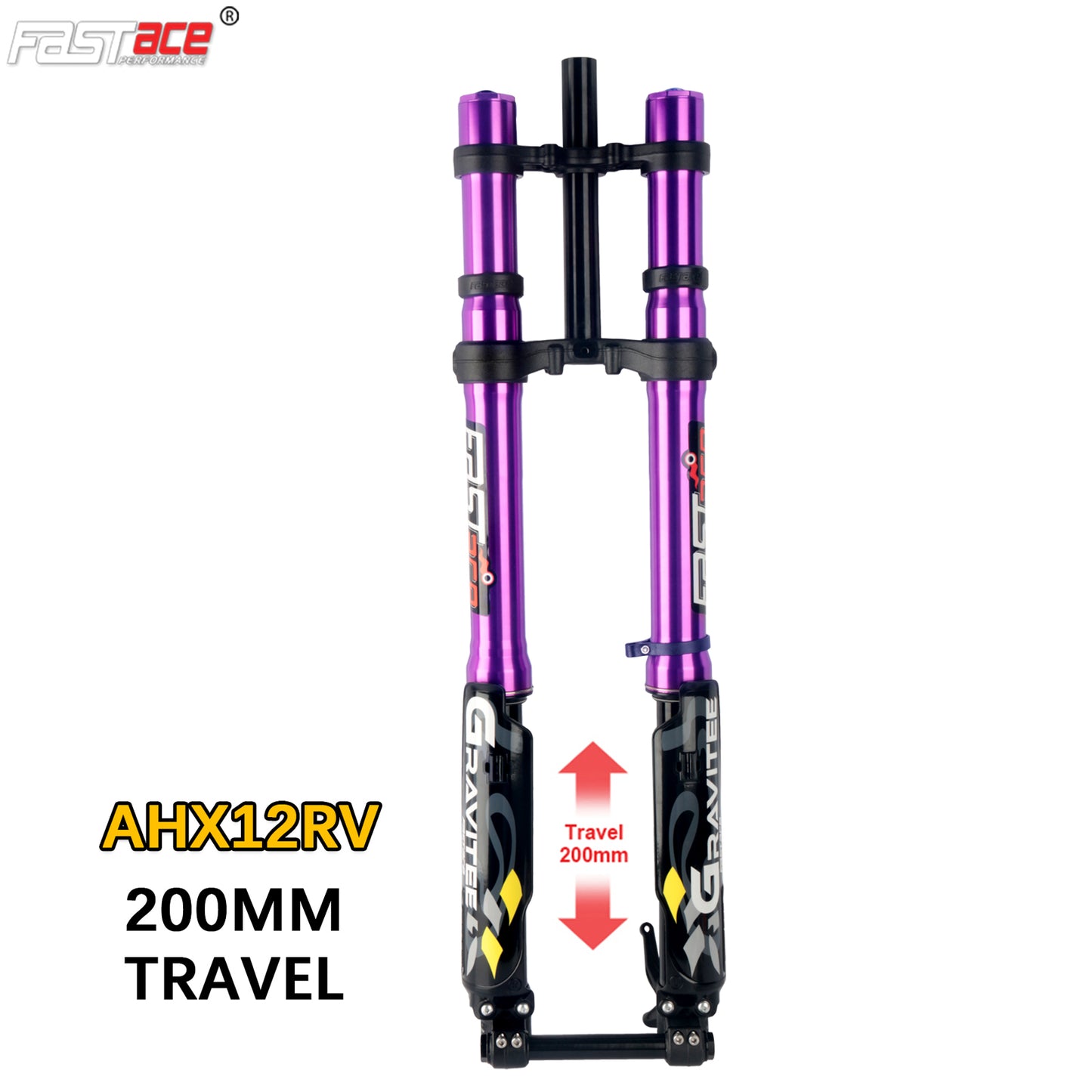

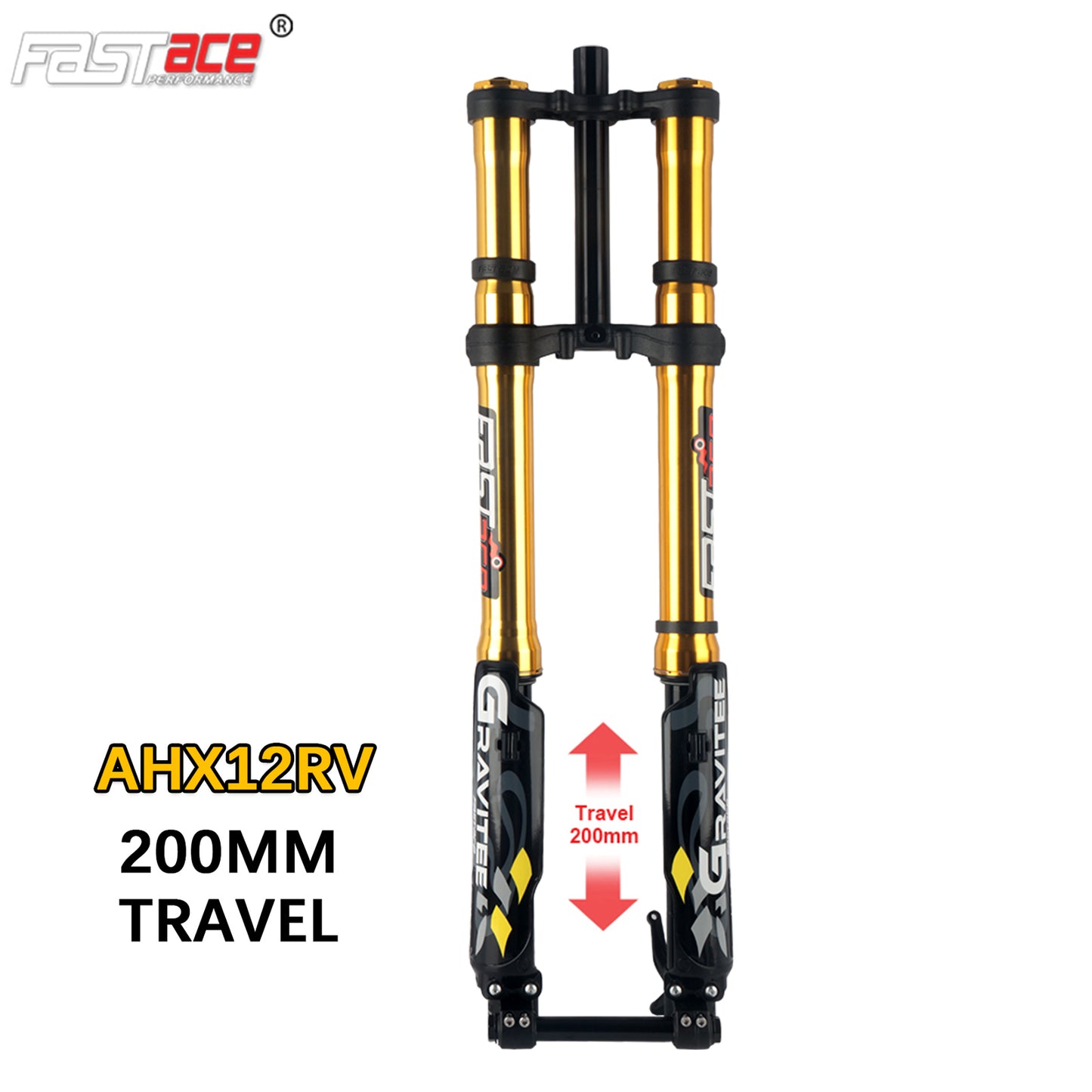

Travel: 200 mm
Brake Post Mount: 203 mm (223 Max)

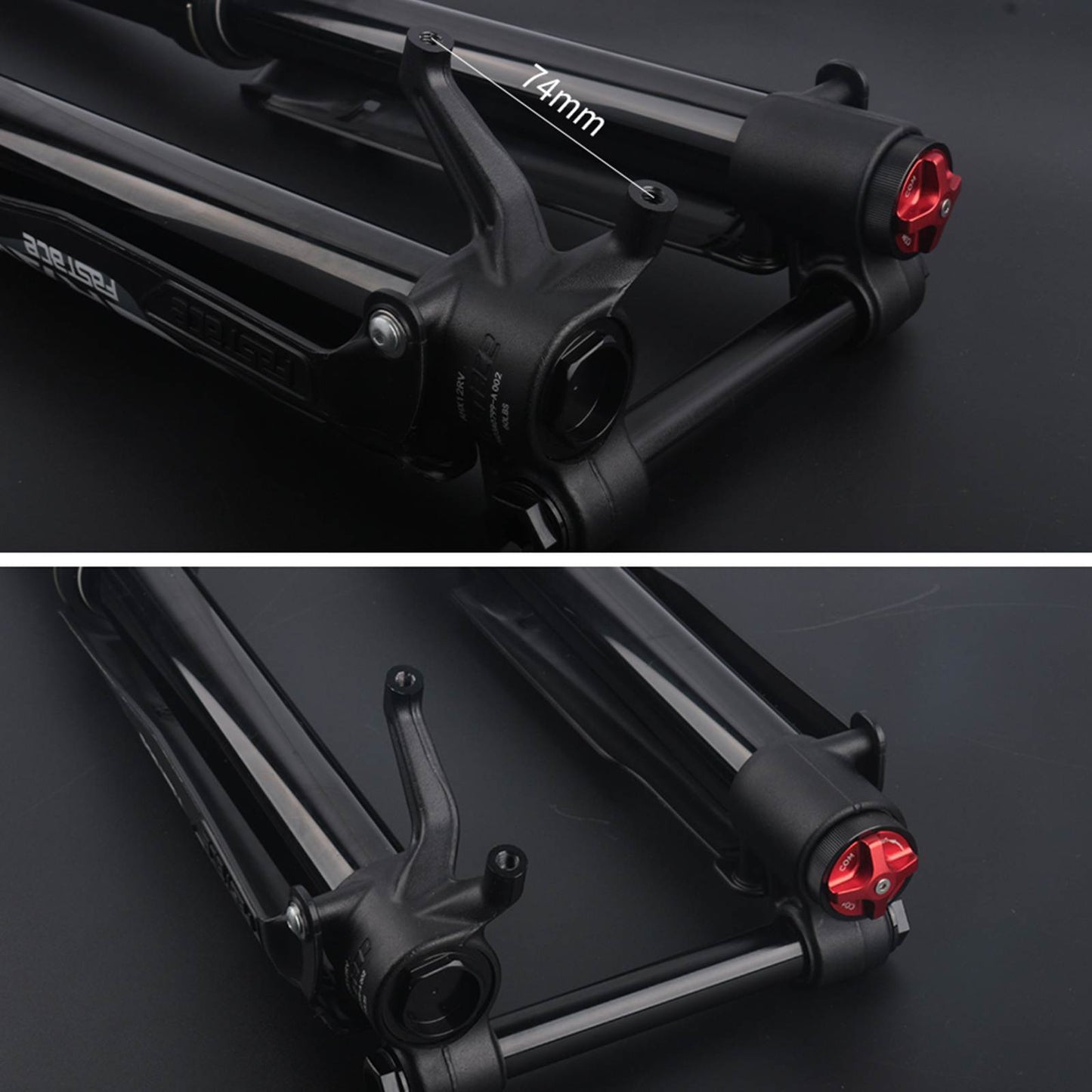

Caliper Distance: 74 mm
Max Tyre Size: 80 mm
Extras: Threaded TSR
E-Bike Compatible: Yes
Offset: 47 mm (27.5" Option); 57 mm (29" Option)

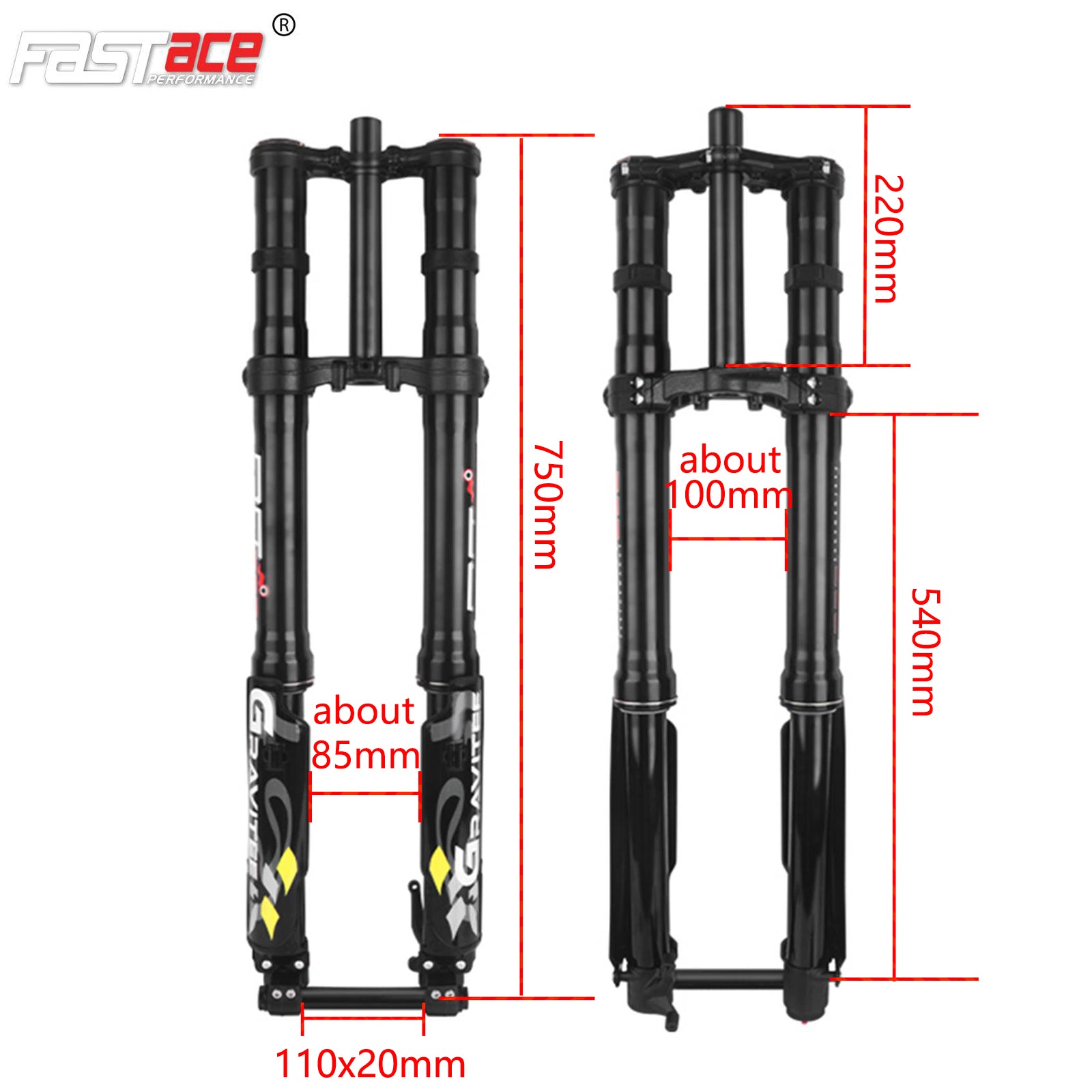

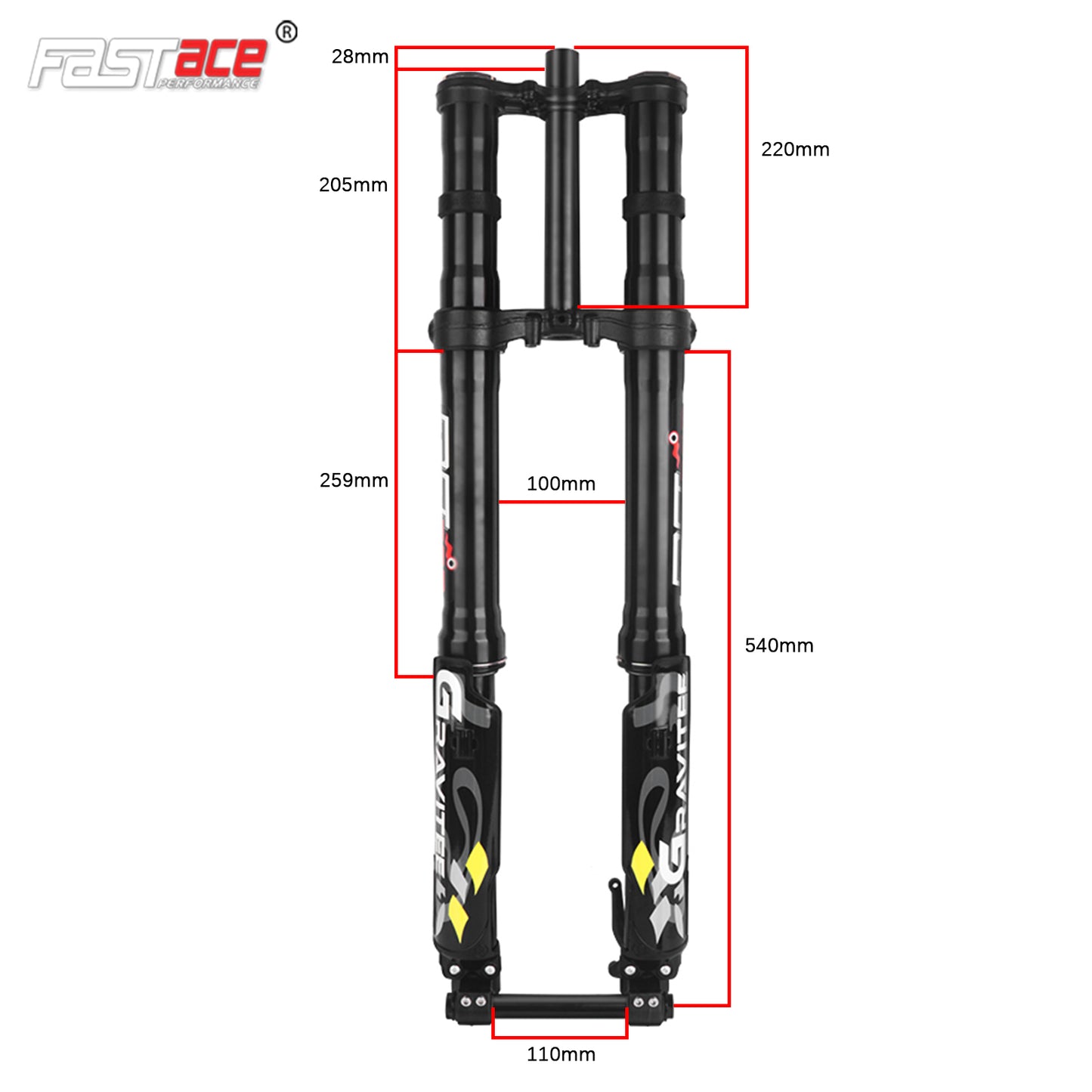

Ride Height: 582 mm (27.5" Option), 602 mm (29" Option)
Spring: Coil Spring 60lbs for 100kg-120kg Riders Weight
AHX12RV 60lbs Front Fork DESCRIPTIONS:

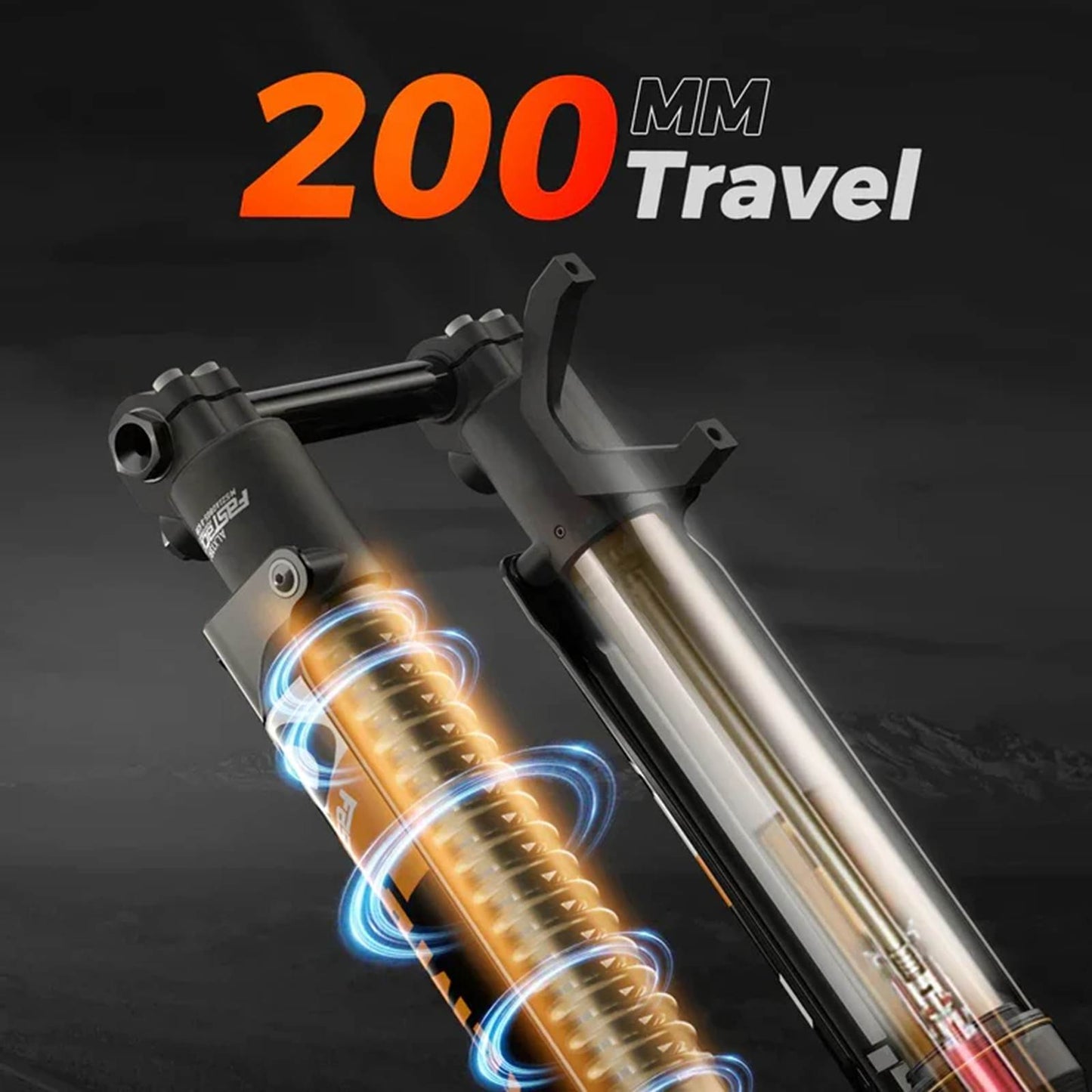

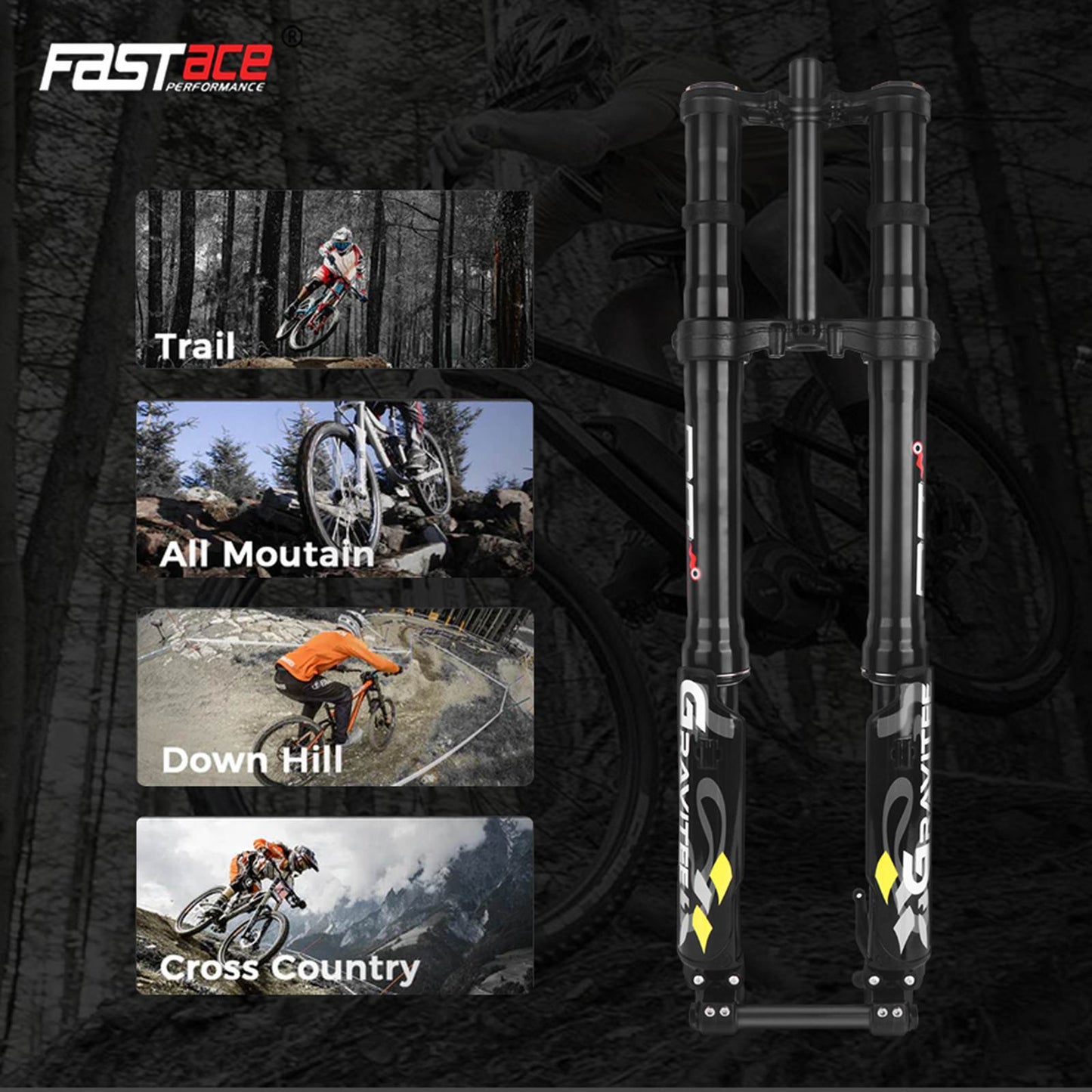

Versatile Design -- With a travel of 200mm, this multi-function FASTACE front fork is compatible with Sur-Ron Light Bee X, Talaria sting, Segway X160 X260 models, and it fits stock plastics perfectly. The compression damping and rebound damping adjustment functions provide a greater riding experience on your Surron or Talaria sting.
Three In One--and has combined three different sizes of front fork into one, which is compatible with 26/27.5/29 inches, which means that you do not need to carefully compare the size of the bike to choose the correct front suspension.
Strong inner Design--FASTACE front fork is a lightweight spring damper designed and manufactured for fast downhill bikes. Its inner and outer tubes, upper and lower plates, left and right legs are made of aluminum alloy with high strength and light weight, and the interior is designed with spring and oil pressure damping.
Hydraulic Damping System--The hydraulic damping system of the FASTACE front fork is inside the right tube, which suppresses vibration and impact caused by acceleration, deceleration, and road bumps. The internal damper uses wear-resistant, low freezing point, and high-quality shock absorber oil to ensure damping stability and reliability.

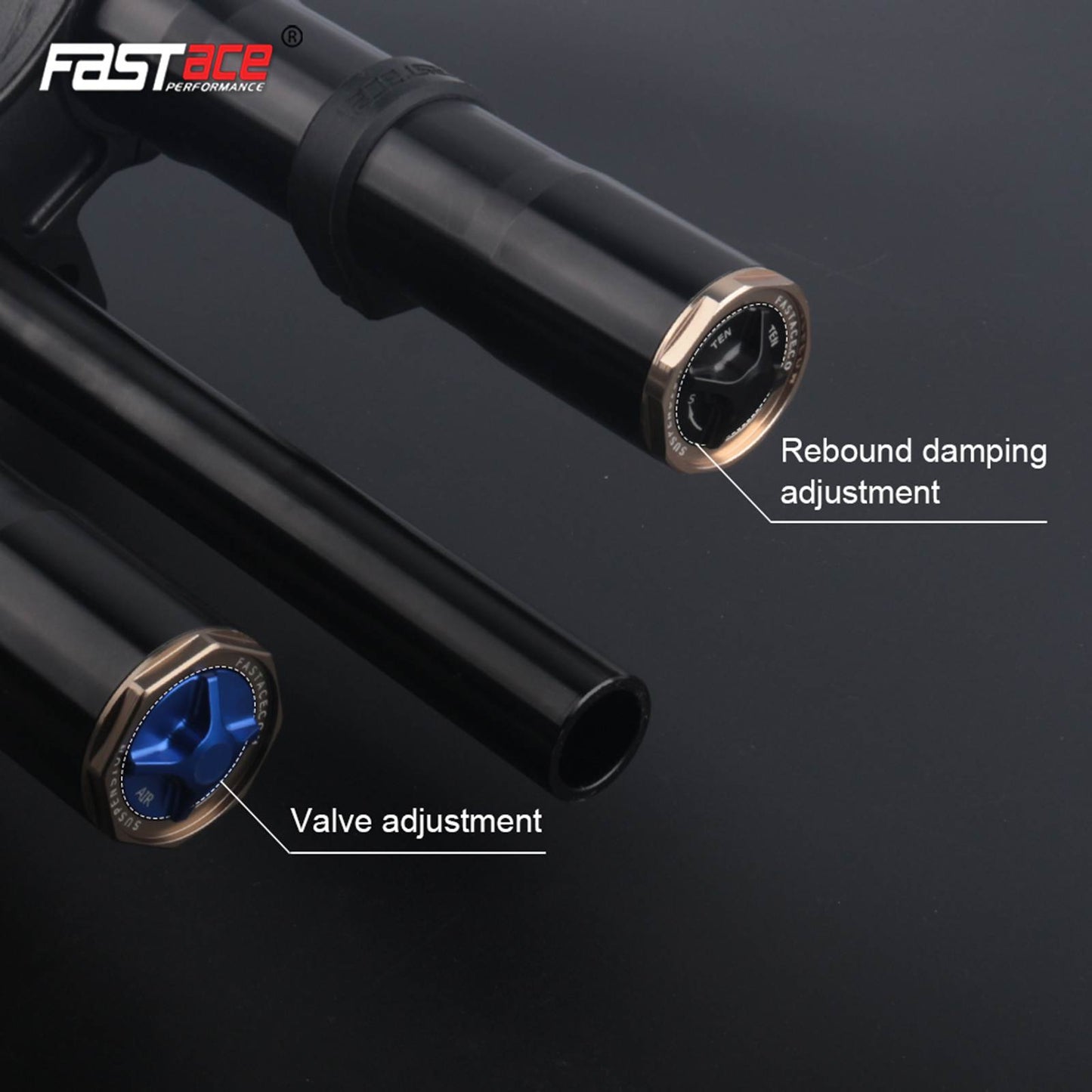

HS and LS Compression Damping Adjustments--The High and low speeds can effectively improve the damping effect when encountering speed bumps on street roads, bringing the rider the feeling as if the speed bumps don't exist, and when riding off-road, the 18 steps high and low-speed compression damping adjustments can provide drivers with maximum damping, whether it's flipping in the air and landing on the ground or leaping up a steep hill.

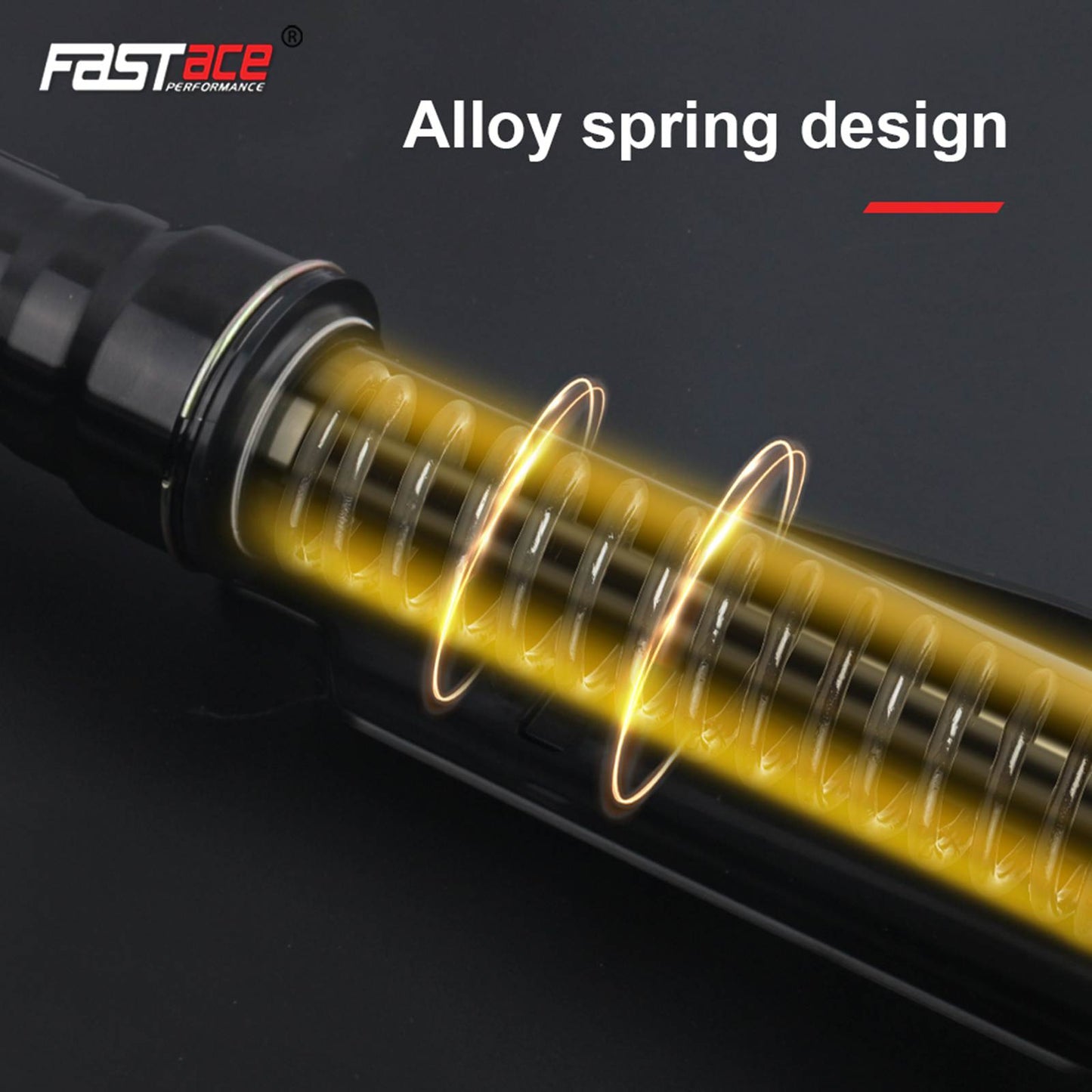

Alloy Steel Spring Design--High strength alloy steel spring design is used inside the front suspension left tube, which can reduce weight and support the rider's weight compared with the conventional spring, so as to meet the various needs of your daily riding.
Note:

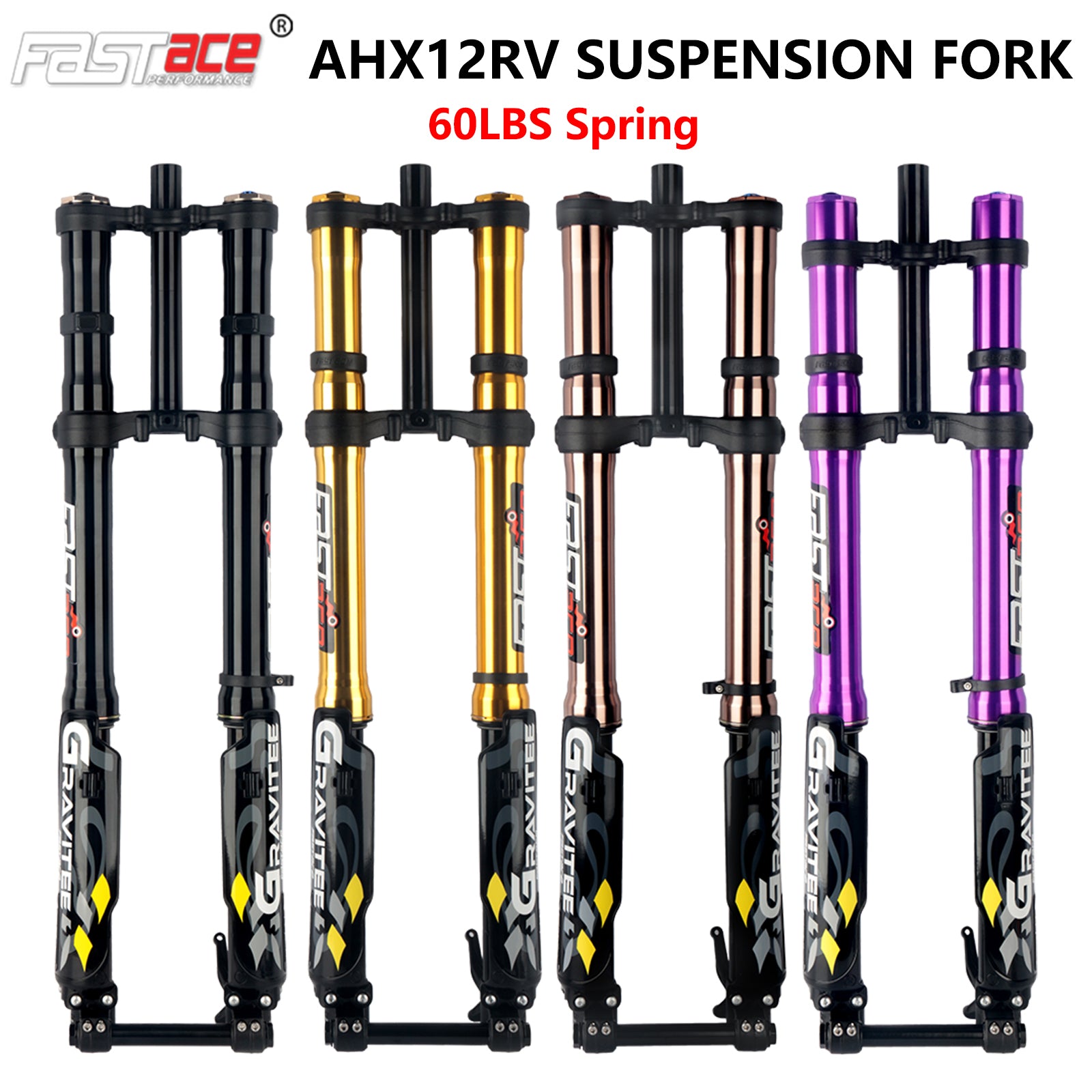

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
